Products

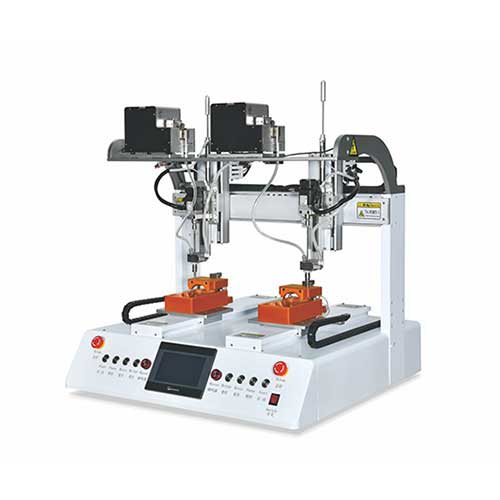

Automatic Screw Locking Machine SF-4222-2Z

Screw locking range(X*Y*Z / X*Y*Z ): 220x420x135 / 220x420x135mm Screw locking time: 0.8~1.2s/pcs Repetitive accuracy: ±0.03mm Program recording mode: 15 groupe,each group 99 points Electric batch mode: Precision servo motor (Mitsubishi/Delta) Feeding mode: Direct screw feeding method (self-owned brand) Control system: MCU + touch screen control system Motor system: Precision stepping (closed loop) motor (domestic brand) Driving mode: Synchronous belt/precision linear guide (Taiwan HIWIN) Input power supply: 220V/50HZ Working air current: 0.4~0.6MPA Edit mode: Hand drag & teaching Working environment temperature: 5~40° Humidity of working environment: 20-90% Applicable screw specifications: PB/KB head type screws (including stainless steel screws) except meson type

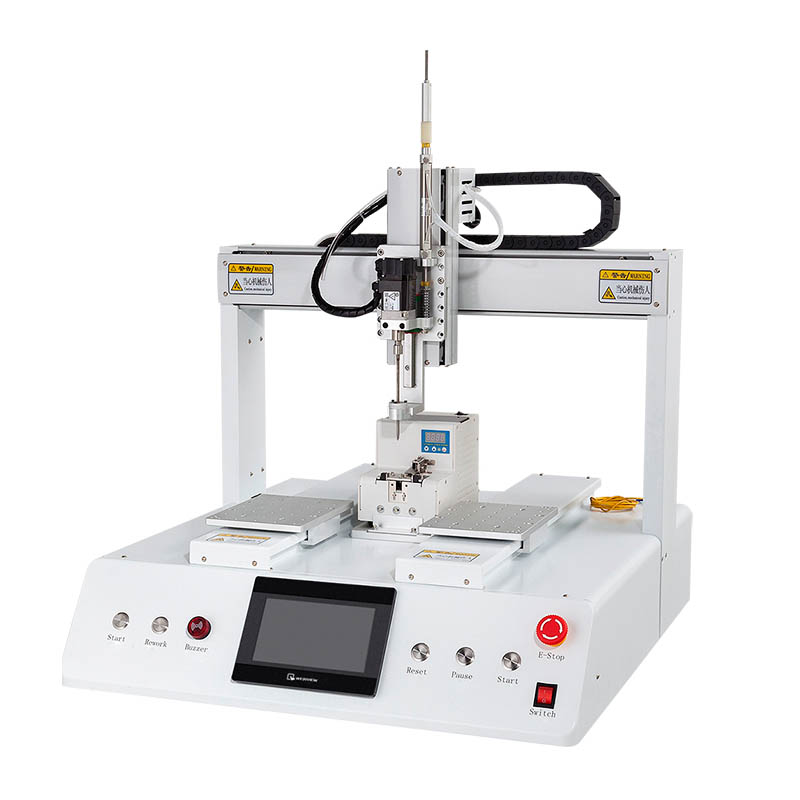

Automatic Screw Locking Machine SF-4221-2Y

Yoda Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation. ● Screw locking range(X*Y1*Y2*Z): 210x420×420x135mm ● Screw locking time: 1.0~1.5s/pcs ● Repetitive accuracy: ±0.03mm ● Program recording mode: 15 Groupe,each group 99 points ● Electric batch mode: Precision Servo Motor (Mitsubishi/Delta) ● Feeding mode: Turntable screw feeding (self-owned brand) ● Input power supply: 220V/50HZ ● Working air current: 0.4~0.6MPA ● Applicable screw specifications: Cross recessed (flat head/round head/meson head) screws ● Suitable for locking screw size: M1.5~M4

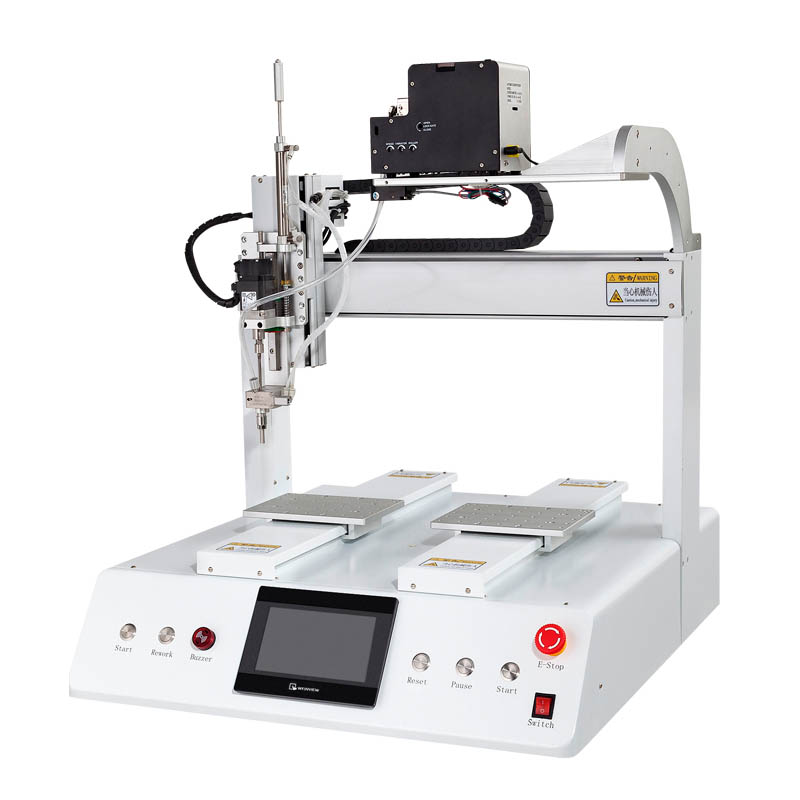

Automatic Screw Locking Machine SF-4223-2Y

The drop-type screw structure can realize the lock function of the standard surface structure of the product lock screw position. ● Screw locking range(X*Y1*Y2*Z): 230x420 420x135mm ● Screw locking time: 0.8~1.2s/pcs ● Repetitive accuracy: ±0.03mm ● Program recording mode: 15 Groupe,each group 99 points ● Electric batch mode: Precision Servo Motor (Mitsubishi/Delta) ● Feeding mode: Direct screw feeding method (self-owned brand) ● Control system: MCU + touch screen control system ● Motor system: Precision stepping (closed loop) motor (domestic brand) ● Driving mode: Synchronous belt/precision linear guide (Taiwan HIWIN) ● Input power supply: 220V/50HZ ● Working air current: 0.4~0.6MPA ● Edit mode: Hand drag & teaching ● Working environment temperature: 5~40º ● Humidity of working environment: 20-90% ● Applicable screw specifications: PB/KB head type screws (including stainless steel screws) except meson type

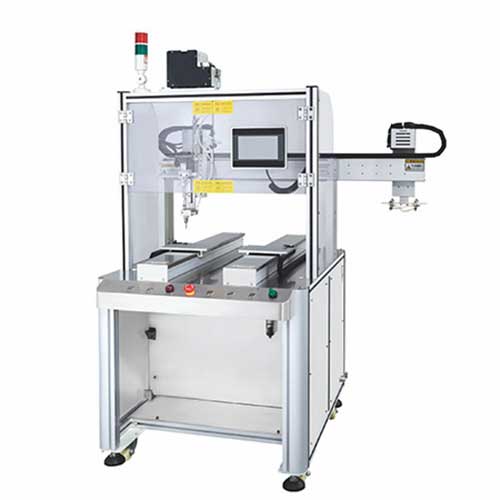

Automatic Screw Locking Machine SF-7026-2Z

SF-7026-2Z Automatic Screw Locking Machine is mainly used in toys, small appliances,electronic product,instruments and apparatus,lighting,plastic parts,alloy parts,communication equipment, audio and otherscrew locking processes. ● The drop-type screw structure can realize the lock function of the standard surface structure of the product lock screw position. ● Double-mode left and right alternately replace products to achieve high efficiency working mode ● Supports missing locking/ tooth sliding/tooth floating alarm function ● Supports the adjustment function of front-loading and rear-taking or front-loading and front-taking ● Supports auto-sensing startup function ● Supports servo electric batch speed and torque self-adjusting function ● Supports hand drag adjustment to lock screw point adjustment function ● The vertical base does not require an additional worktable and can be flexibly moved and adjust the working position.

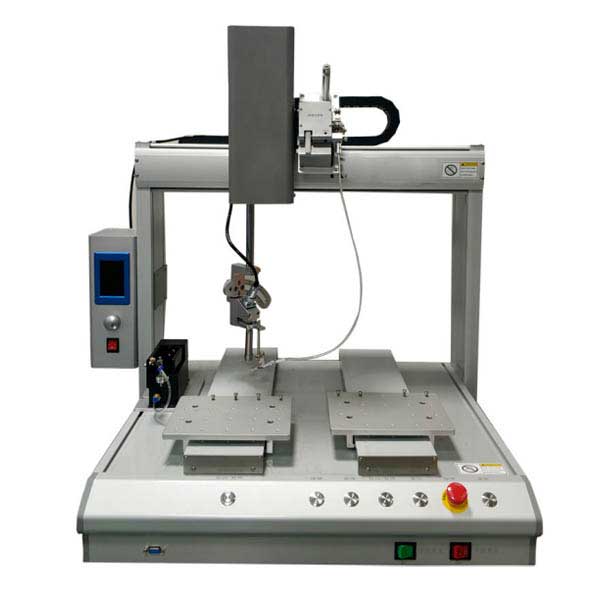

Desktop Soldering Machine

Desktop Soldering Machine, flexible and diverse soldering methods, with functions such as spot welding, drag welding (pull welding). Temperature control type: Optional Wilo 200W, 150W, high power 600W and other temperature controls Heater: 400W (high power) [optional Wilo 200W, 150W, high power 600W and other heating cores] Wire supply method: 0.5-1.2mmm (With broken tin, other wire diameters can be customized)

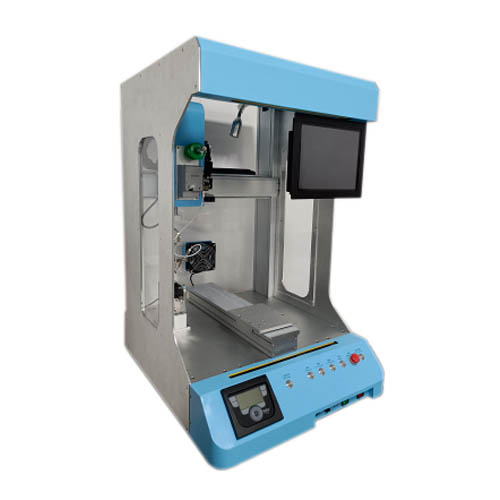

IoT Soldering Robot

1. The software system is independently developed, using industrial computers and touch screens, making the machine more stable. 2. Equipped with other functions to make it smoother and simpler: such as safety light curtains, optical components, infrared temperature measurement, preheating platform, MES system data interaction, etc., built-in dual temperature control real-time correction system and real-time curve monitoring of temperature control. 3. The follow-up smoking design can achieve smoke without blind spots and keep the air in the workshop clean. 4. The six-axis linkage manipulator is controlled by advanced PC algorithms, which effectively improves the accuracy of the machine. 5. Full touch operation and fool-like programming. During teaching, you can complete the setting of a solder joint with just a touch of your finger. There are no special skill requirements for the operator. 6. Flexible and diverse soldering methods, tin supply can be started at any time, effectively meeting various soldering process requirements and improving soldering efficiency. 7. Shake welding function: Turning on this function during welding can make welding faster, especially effective for welding large solder joints.

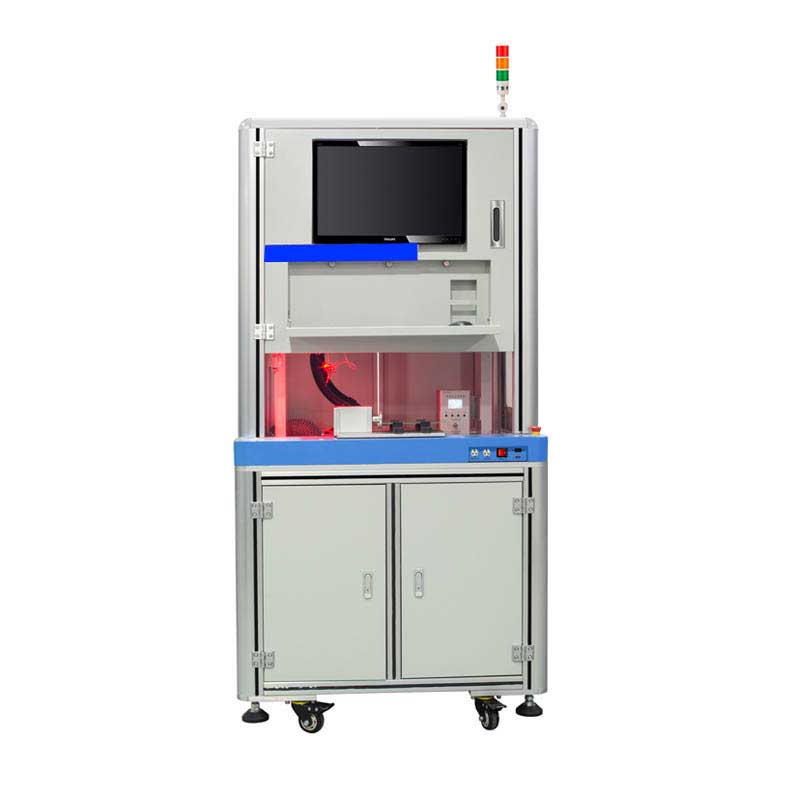

Laser Soldering Machine

Repeat accuracy X,Y,Z-axis: ±0.02mm R-axis: ±0.02° Power supply: 220V 50Hz Total power: 600W-1.5KW Optional according to configuration Laser parameters: 10W-150W optional Laser wave length: 808nm/980nm/1064nm/1070nm(optional) Control method: Microcomputer + PC image processing Visual positioning system: ±0.03mm Processing range: 300*300mm can be processed≤ 0.15pitch Tin method: Premade tin/dot solder paste optional

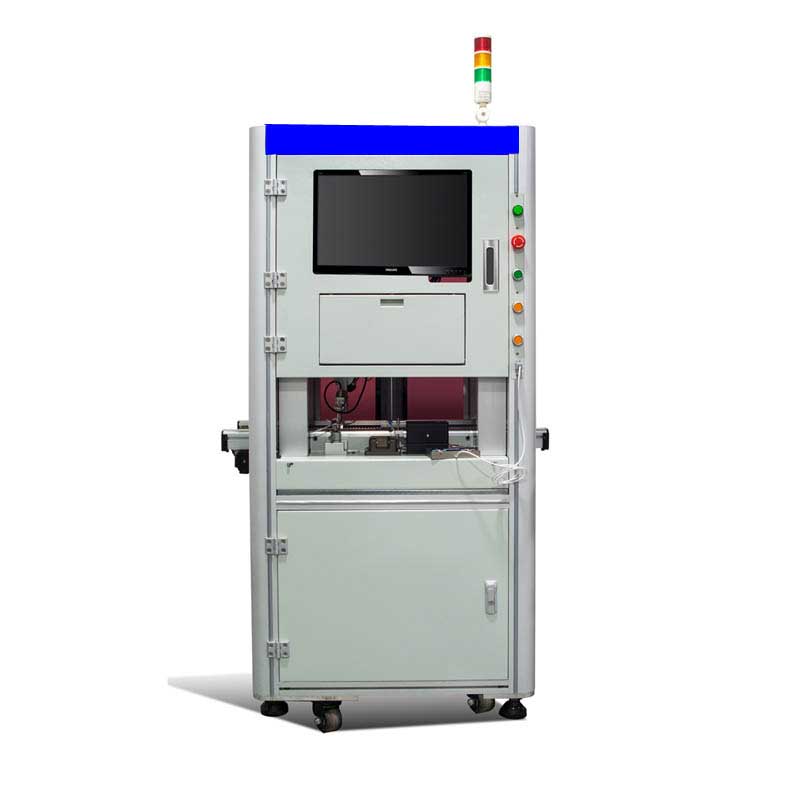

Solder Joint Inspection

Movement method: Five-axis visual positioning Feeding mode: Automatic loading and unloading Material feeding method: Double speed chain line Welding method: Spot welding, drag welding Heating module: WELLER 200W welding module【Optional WELLER 150/high power 400W/600W/800W】 XYZ module: Closed loop motor Workbench: Flip horizontally 180° Speed: (XYZ)650mm/s R:180°/s Controller: PC regulation Program recording mode: The theoretical value is infinite Mode of motion: Five-axis rectangular coordinates Air pressure: 0.6～0.9Mpa Power supply: 100～240V Working temperature: 0～40°C Humidity: 20～90% Applicable tin wire diameter: 0.4～1.2mm

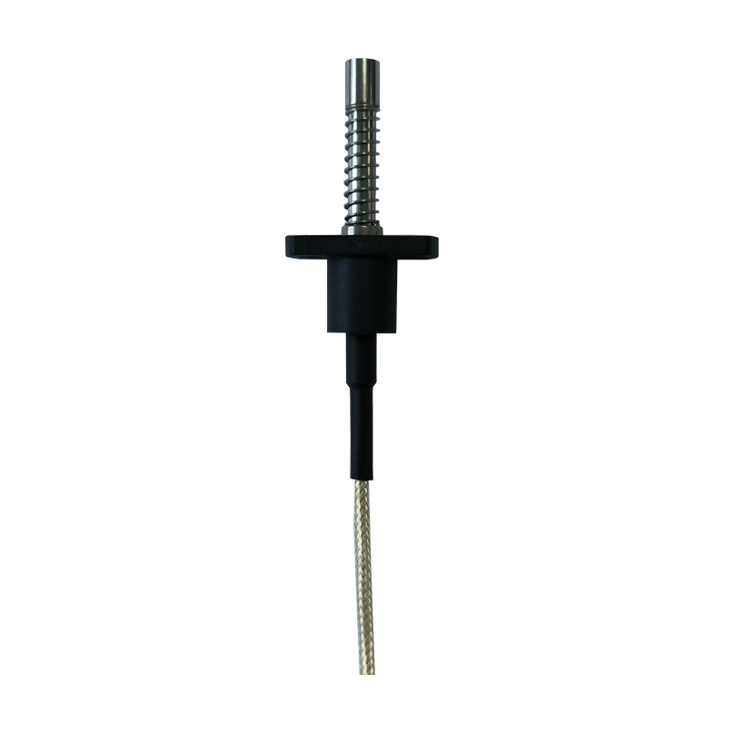

Platinum Resistance Temperature Sensor

Platinum resistance temperature sensor for lithium battery formation equipment.

Vehicle Temperature Sensor

Auto Parts Vehicle Coolant Temperature Sensor Place of Origin: Guangdong, China Brand Name: Youda Warranty: 12 Months Type: Temperature Sensor

Platinum Resistance Temperature Sensor

Platinum resistance temperature sensor for lithium battery formation equipment is the most common installation method of platinum resistance temperature sensor and is suitable for all walks of life. Resistance and accuracy: 1/3B±0.1°C@0°C L=100(mm) 10-3000mm can be customized according to the length specified by the customer

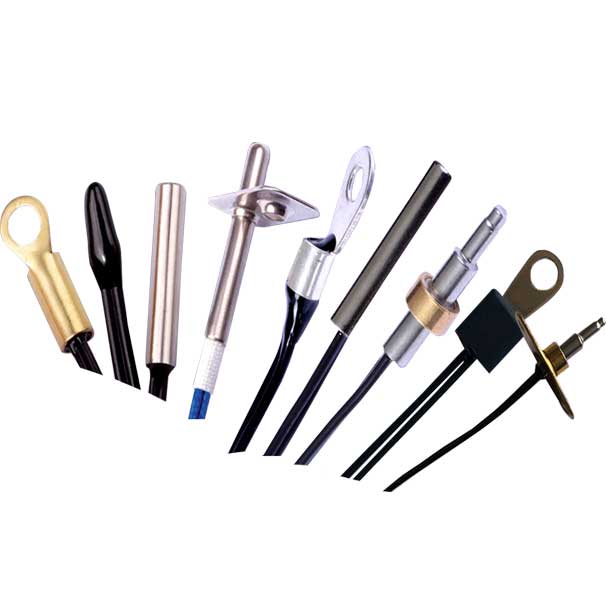

Home Appliance Temperature Sensor

Digital signal temperature measurement cable

Our Strengths

PATENT

It has many national invention patents and international invention patents.
TEAM

The core team includes senior talents in the field of automatic screw machines.
HONOR

Independent innovation products,independent research and development.

About Us

Automatic Lock Screwing Machine Supplier

Yoda International Co.,Limited subsidiary Dongguan yoda automation equipment factory is located in Chang'an Town, Dongguan City, the capital of mechanical molds in South China. It is a professional equipment company specializing in the research and development, production and sales of automatic screw locking machines and non-standard automation, and enjoys a high reputation in the industry. The product is widely used in multiple fields such as electronics, electrical appliances, communication equipment, etc.
