Automatic Screw Locking Machine

Automatic Screw Fastening Robot SF-4221-2Y Automatic Screw Fastening Robot SF-4221-2Y
Automatic Screwdriving Machine Automatic Screwdriving Machine
Automatic Screw Fastening Machine Automatic Screw Fastening Machine

Automatic Screw Locking Machine SF-4221-2Y

Yoda Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.
● Screw locking range(X*Y1*Y2*Z): 210x420×420x135mm
● Screw locking time: 1.0~1.5s/pcs
● Repetitive accuracy: ±0.03mm
● Program recording mode: 15 Groupe,each group 99 points
● Electric batch mode: Precision Servo Motor (Mitsubishi/Delta)
● Feeding mode: Turntable screw feeding (self-owned brand)
● Input power supply: 220V/50HZ
● Working air current: 0.4~0.6MPA
● Applicable screw specifications: Cross recessed (flat head/round head/meson head) screws
● Suitable for locking screw size: M1.5~M4

GET A QUOTE

Product Description

Yoda Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.
Yoda automaitc screw locking machine 2 years warranty

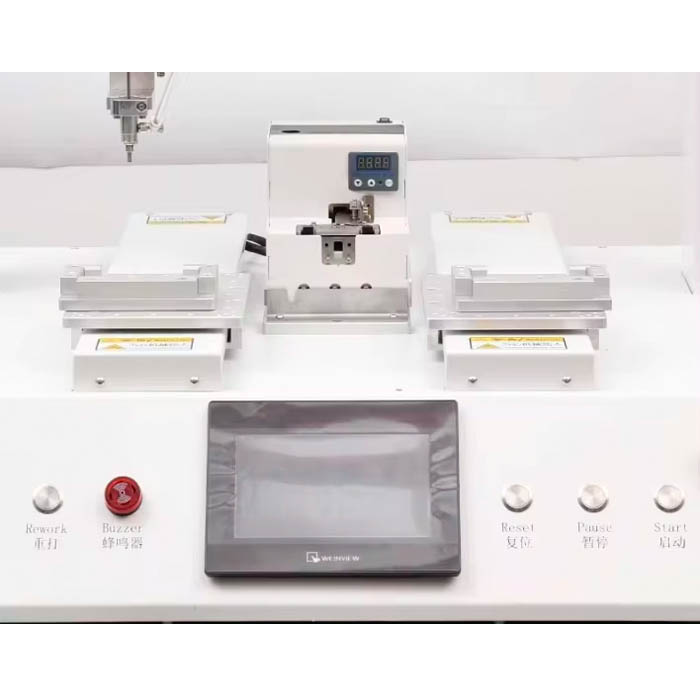

     Automatic Screw Locking Machine SF-4221-2Y
● Permanent magnetic suction screw structure, which can realize the standard surface structure of the product lock screw position and Membrane head deep hole / beveled screw lock function
● Double-mode left and right alternately replace products to achieve high efficiency working mode
● Supports missing locking/ tooth sliding/tooth floating alarm function
● Supports the adjustment function of front-loading and rear-taking or front-loading and front-taking
● Supports auto-sensing startup function
● Supports servo electric batch speed and torque self-adjusting function
● Supports hand drag adjustment to lock screw point adjustment function

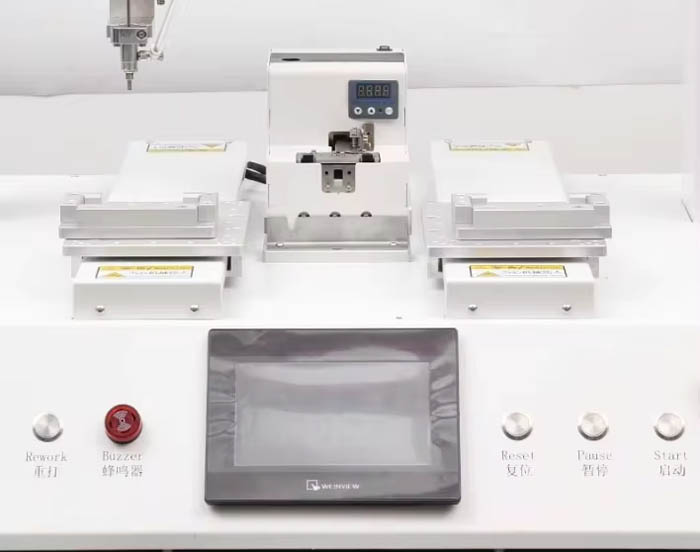

automatic screw lcoking machine SF-4221-2Y details


Product Parameters


Screw locking range(X*Y1*Y2*Z) 210x420×420x135mm
Screw locking time 1.0~1.5s/pcs
Repetitive accuracy ±0.03mm
Program recording mode 15 Groupe,each group 99 points
Electric batch mode Precision servo motor (Mitsubishi/Delta)
Feeding mode Turntable screw feeding (self-owned brand)
Control system MCU + touch screen control system
Motor system Precision stepping (closed loop) motor (domestic brand)
Driving mode Synchronous belt/precision linear guide (Taiwan HIWIN)
Input power supply 220V/50HZ
Working air current 0.4~0.6MPA
Edit mode Hand drag & teaching
Working environment temperature 5~40°
Humidity of working environment 20-90%
Applicable screw specifications Cross recessed (flat head/round head/meson head) screws, except stainless steel
Suitable for locking screw size M1.5~M4(the screw length does not exceed 16mm),customized if it exceeds the range
Machine size(L*M*H) 810x720x900mm
Machine weight 80KG


Product Application

SF-4221-2Y Automatic Screw Locking Machine is mainly used in toys, small appliances, electronic product, instruments and apparatus, lighting,plastic parts, alloy parts, communication equipment, audio and other screw locking processes.

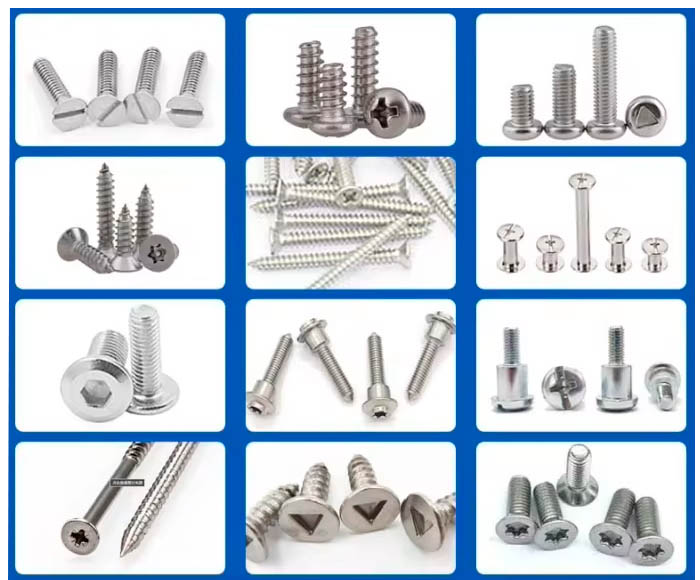

automatic screw locking machine application

Manufacture Ability


Yoda Machinery Equipment is a professional equipment company specializing in the research and development, production and sales of automatic locking screw machines and non-standard automation, and enjoys a high reputation in the industry.
screw locking machine manufacture ability
