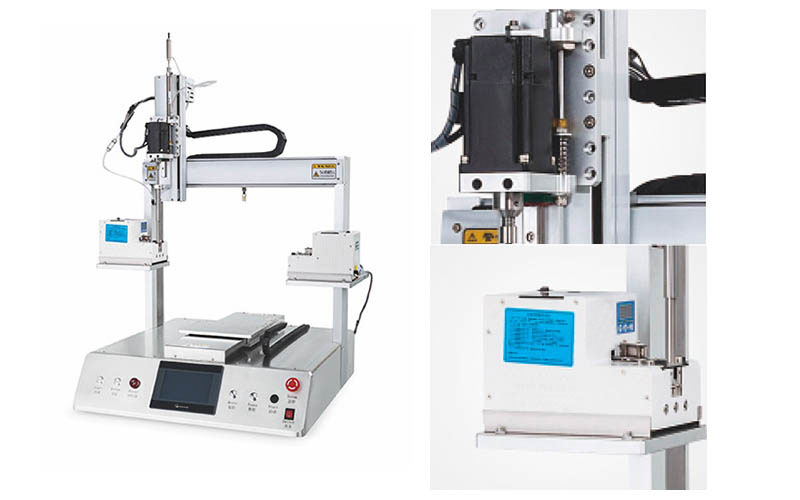

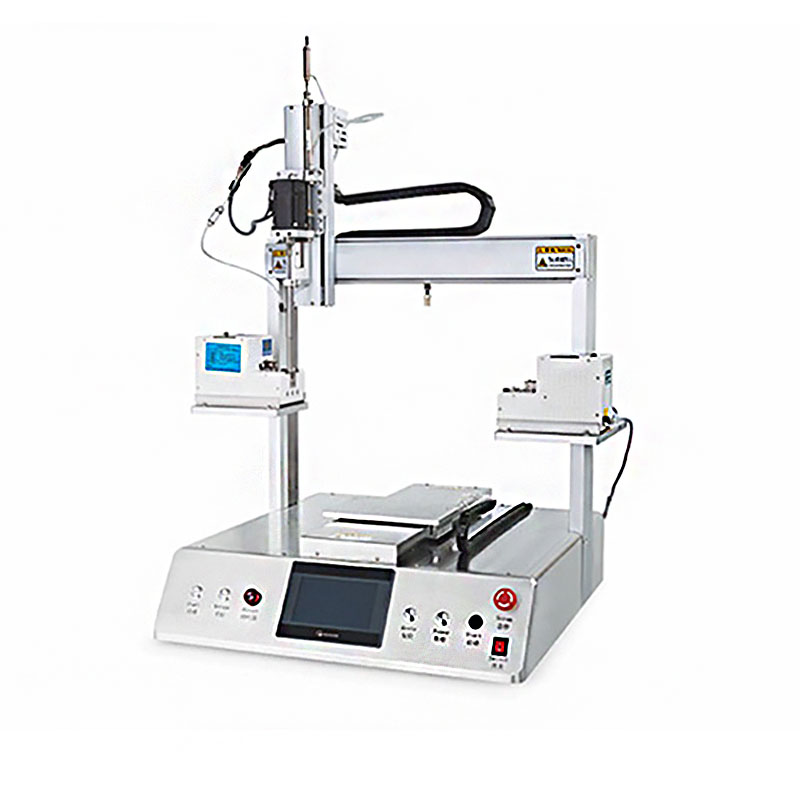

Product Description
● The vacuum suction and suction screw structure can realize the deep hole/bevel screw/meson screw lock function of the product lock screw position.
● The double feeding mode supports the quick screwing function of two screws with different lengths or larger products on the same mold.
● Supports missing locking/ tooth sliding/tooth floating alarm function
● Supports the adjustment function of front-loading and rear-taking or front-loading and front-taking
● Supports auto-sensing startup function
● Supports servo electric batch speed and torque self-adjusting function
● Supports hand drag adjustment to lock screw point adjustment function
Product Parameters
| Screw locking range(X*Y*Z) | 450x420x135mm |
| Screw locking time | 1.0~1.5s/pcs |
| Repetitive accuracy | ±0.03mm |
| Program recording mode | 15 groups, 99 points per group |
| Electric batch mode | Precision servo motor (Mitsubishi/Delta) |
| Feeding mode | Turntable screw feeding (self-owned brand) |
| Control system | MCU + touch screen control system |
| Motor system | Precision stepping (closed loop) motor (domestic brand) |
| Driving mode | Synchronous belt/precision linear guide (Taiwan HIWIN) |
| Input power supply | 220V/50HZ |
| Working air current | 0.4~0.6MPA |
| Edit mode | Hand drag & teaching |
| Working environment temperature | 5~40° |
| Humidity of working environment | 20-90% |
| Applicable screw specifications | All types of specifications |
| Suitable for locking screw size | M1.5~M4(the screw length does not exceed 16mm),customized if it exceeds the range |
| Machine size(L*M*H) | 960x720x900mm |
| Machine weight | 82KG |
Product Application
Manufacture Ability
Yoda Machinery Equipment is a professional equipment company specializing in the research and development, production and sales of automatic locking screw machines and non-standard automation, and enjoys a high reputation in the industry.
