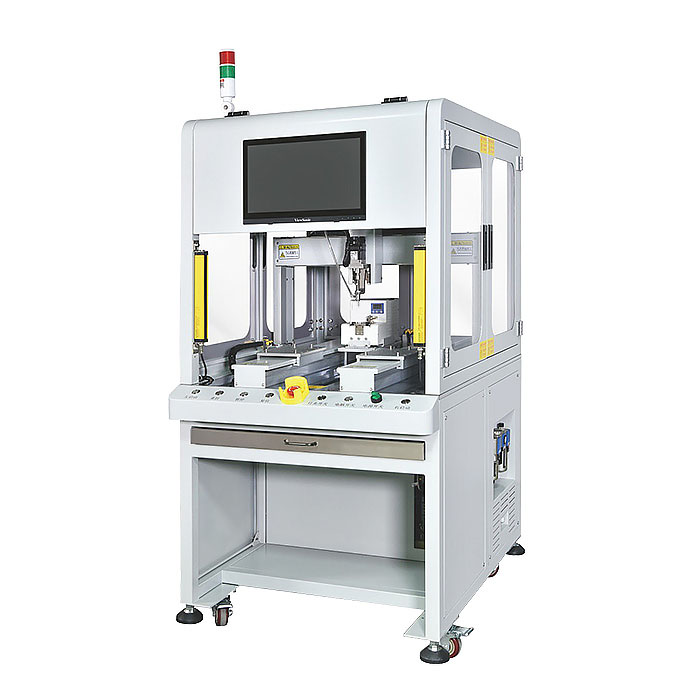

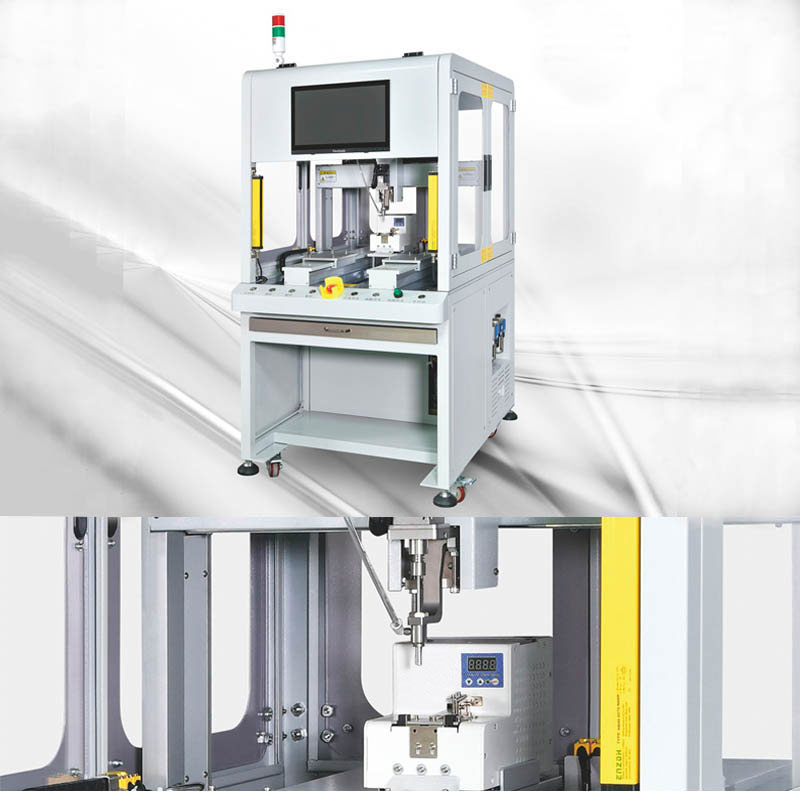

Product Description
Vacuum Suction Type
● The vacuum suction screw structure can realize the locking function of the deep hole/bevel screw/meson screw of the product lock screw position
● Dual-mode left and right alternately replace products to achieve high efficiency working mode
● Supports missing locking/ tooth sliding/tooth floating alarm function
● Supports the adjustment function of front-loading and rear-taking or front-loading and front-taking
● Supports auto-sensing startup function
● Supports servo electric batch speed and torque self-adjusting function
● Supports real-time torque data upload and curve display function
● Supports code scanning data recording function
● Supports single-point screw torque setting function
● Supports hand-dragging adjustment to lock screw point adjustment function
● The vertical base does not require an additional worktable and can be flexibly moved and adjust the working position
Product Parameters
| Screw locking range(X*Y1*Y2*Z) | 280×650×280×650×100mm |
| Screw locking time | 1.5~1.8s/pcs |
| Repetitive accuracy | ±0.03mm |
| Program recording mode | 15 groupe,each group 99 points |
| Electric batch mode | Precision servo motor (Mitsubishi) |
| Feeding mode | Turntable screw feeding (self-owned brand) |
| Control system | Industrial computer control system |
| Motor system | Precision stepping (closed loop) motor (domestic brand) |
| Driving mode | Synchronous belt/precision linear guide (Taiwan HIWIN) |
| Input power supply | 220V/50HZ |
| Working air current | 0.4~0.6MPA |
| Edit mode | Hand drag & teaching |
| Working environment temperature | 5~40° |
| Humidity of working environment | 20-90% |
| Applicable screw specifications | Apply for all screws |
| Suitable for locking screw size | M1.0~M4 (the screw length does not exceed 16mm),customized if it exceeds the range |
| Machine size(L*M*H) | 1060*800*1900mm |
| Machine weight | 120KG |
Product Application
Manufacture Ability
Yoda Machinery Equipment is a professional equipment company specializing in the research and development, production and sales of automatic locking screw machines and non-standard automation, and enjoys a high reputation in the industry.
