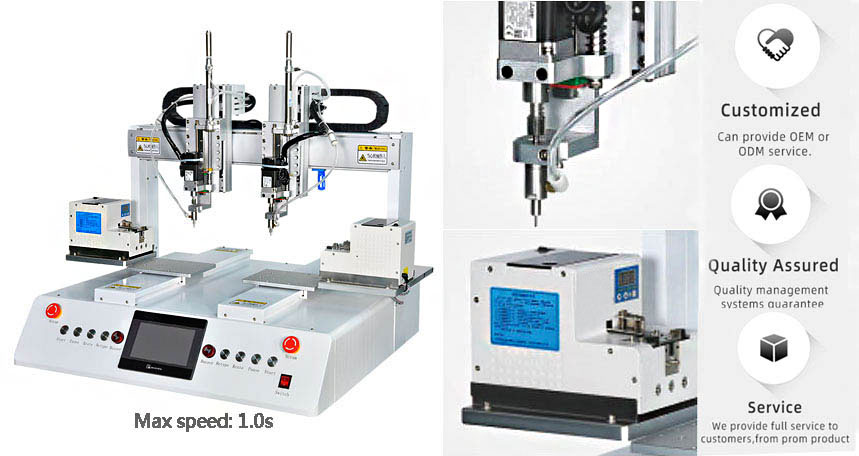

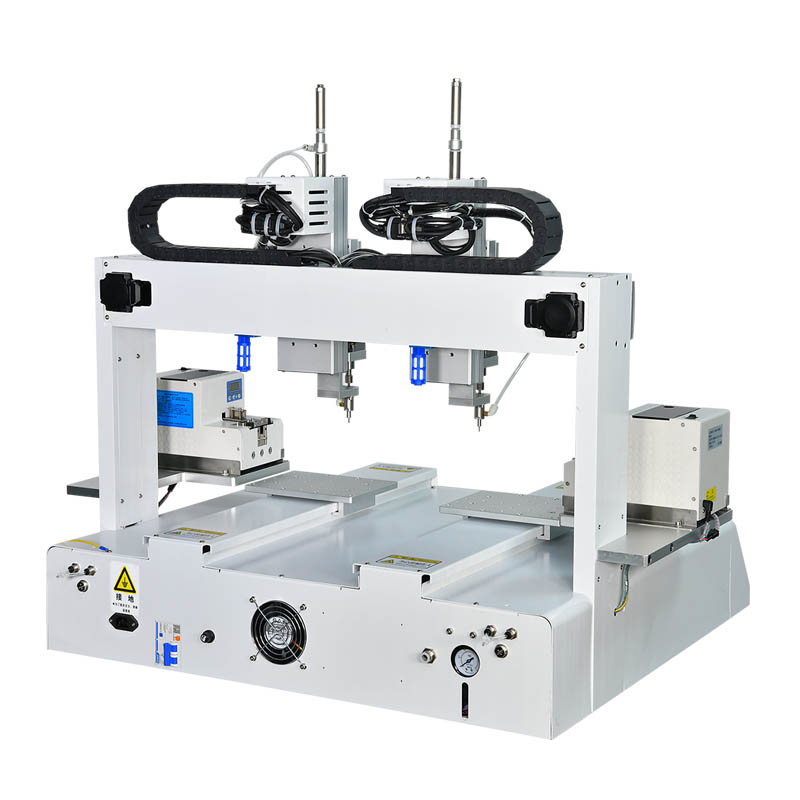

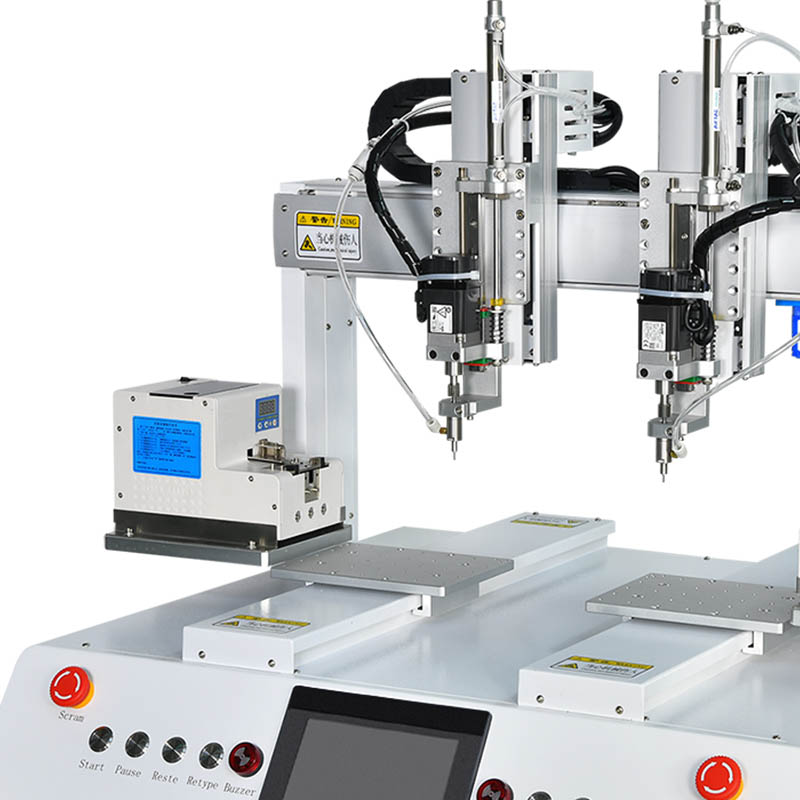

Product Description
Automatic Screw Locking Machine greatly improves the work efficiency and the screw fastening consistency & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.
● Vacuum suction type screw structure, which can realize the standard surfacestructure of the product lock screw position and the lock function of the meson screw
● Dual-mode independent locking of two (or the same type of screw) products forhigher efficiency and higher working mode
● Support for leak lock / slippery / floating tooth alarm function
● Support pre-release or pre-release adjustment function
● Support auto-sensing startup function
● Support servo electric batch speed and torque self-adjusting function
● Support hand drag adjustment to lock screw point adjustment function
Product Parameters
| Locking screw range(X*Y1*Z / X*Y2*Z) | 200x420x135mm 200x420x135mm | ||||||||||
| Locking screw time | 1.0～1.5 S/PCS (single mode) | ||||||||||
| Repetitive accuracy | ±0.03mm | ||||||||||
| Program Recording Mode | 15 Groupe,each group 99 points | ||||||||||
| Electric batch mode | Precision servo motor (Mitsubishi/Delta) | ||||||||||
| Feeding mode | Turntable screw feeding method (own brand) | ||||||||||
| Controlsystem | MCU + touch screen control system | ||||||||||
| Motor system | Precision stepping (closed loop) motor (domestic brand) | ||||||||||
| Driving mode | Synchronous belt/precision linear guide (Taiwan Shangyin) | ||||||||||
| Inputpower supply | 220V150HZ | ||||||||||
| Working Air Current | 0.4~0.6MPA | ||||||||||
| Edit Model | Hand drag type & Teaching type | ||||||||||
| Working environment temperature | 5～40℃ | ||||||||||
| Humidity of working environment | 20-90% | ||||||||||
| Applicable screw specifications | Apply for all screws | ||||||||||
| Suitable for locking screw size | M 1.0～M 4（The length of screw does not exceed 16mm)can be customized if it exceeds the range | ||||||||||
| Machine size | 970x820x900mm | ||||||||||
| Machine weight | 100KG | ||||||||||
Product Application
Manufacture Ability
Yoda International is a professional equipment company specializing in the research and development, production and sales of automatic screw locking machines and non-standard automation, and enjoys a high reputation in the industry.
