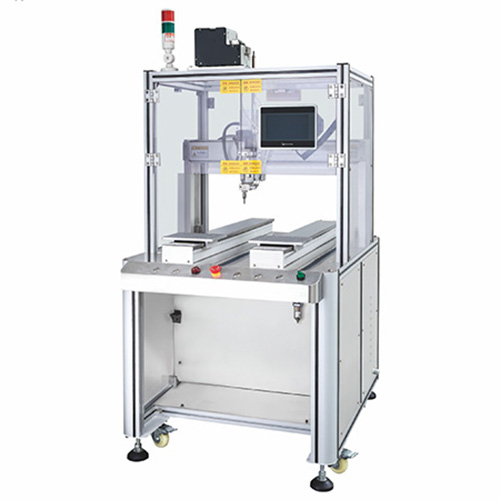

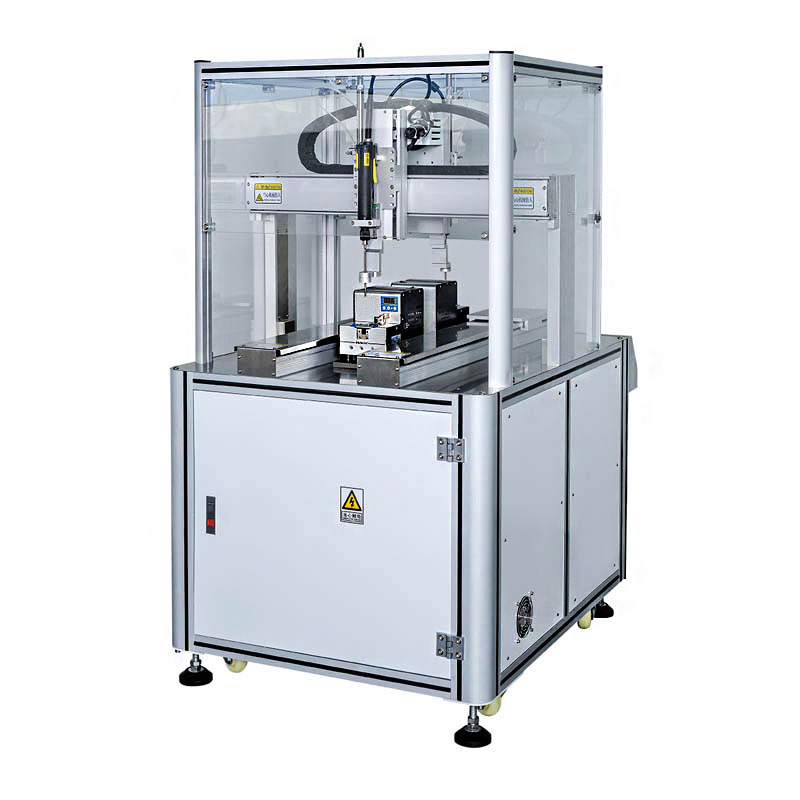

Product Description
We are into all range of Air, Vacuum Compressor, Screw Compressor and many more, along with it we are manufacture of special purpose machine which include various sizes of Auto Screw Tightening Machine, Screw Feeder,Screw Fastening Machine and many more.

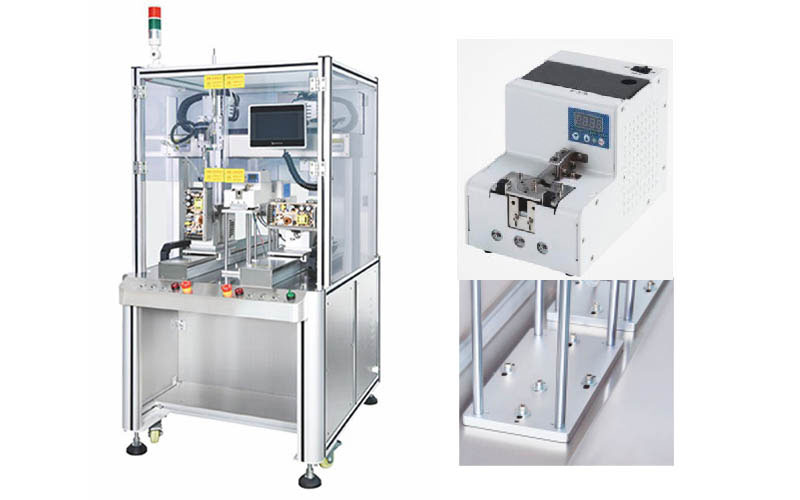

● Vacuum suction screw structure,can realize the locking function of the deep hole/bevel screw meson screw of the product lock screw position.
● The double mode is alternately locked at the same time and the two different specifications screws (or separate operation)are replaced to realize the high efficiency working mode)
● Supports missing locking/ tooth sliding/tooth floating alarm function
● Supports the adjustment function of front-loading and rear-taking or front-loading and front-taking
● Supports auto-sensing startup function
● Supports servo electric batch speed and torque self adjusting function
● Supports hand drag adjustment to lock screw point adjustment function
● The vertical base does not require an additional worktable and can be flexibly moved and adjust the working position
Product Parameters
| Screw locking range(X*Y1*Z/X*Y2*Z) | 240×700×135mm 240×700×135mm | |||||||
| Screw locking time | 1.0~1.5s/pcs | |||||||
| Repetitive accuracy | ±0.03mm | |||||||
| Program recording mode | 15 groups, 99 points per group | |||||||
| Electric batch mode | Precision servo motor (Mitsubishi/Delta) | |||||||
| Feeding mode | Turntable screw feeding (self-owned brand) | |||||||
| Control system | MCU + touch screen control system | |||||||
| Motor system | Precision stepping (closed loop) motor (domestic brand) | |||||||
| Driving mode | Synchronous belt/precision linear guide (Taiwan HIWIN) | |||||||
| Input power supply | 220V/50HZ | |||||||
| Working air current | 0.4~0.6MPA | |||||||
| Edit mode | Hand drag & teaching | |||||||
| Working environment temperature | 5~40° | |||||||
| Humidity of working environment | 20-90% | |||||||
| Applicable screw specifications | All types of specifications | |||||||
| Suitable for locking screw size | M1.5~M4(the length of screw donot over 16mm),customized if it exceeds the range | |||||||
| Machine size(L*M*H) | 1090x810x1750mm | |||||||
| Machine weigh | 120KG | |||||||
Product Application
Manufacture Ability
Yoda Machinery Equipment is a professional equipment company specializing in the research and development, production and sales of automatic locking screw machines and non-standard automation, and enjoys a high reputation in the industry.
