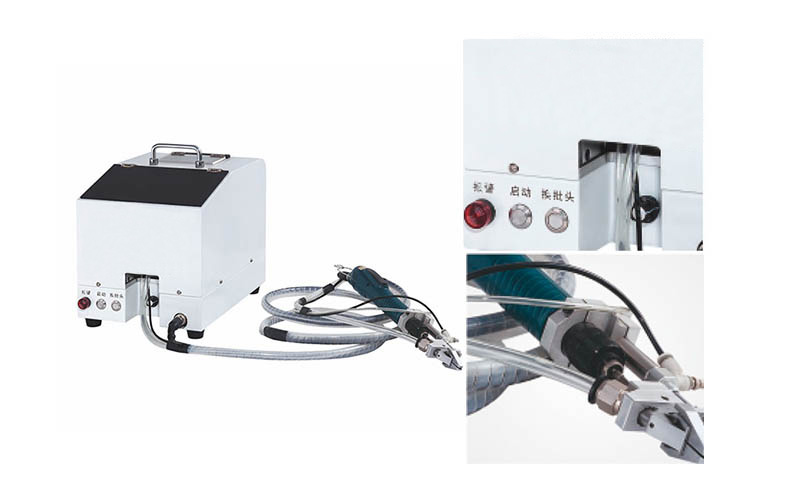

Product Description
● Direct supply (blowing)for screw construction for fast feed automatic locking screws
● Single person can work efficiently and save one labor.The lefthand does not need to take frequent screws,it can be used to hold the product and improve the operation accuracy
● Cleaner,no longer touch the screw directly,avoiding secondary pollution caused by hand contact and rusting
● More efficient,55-60 screws can be locked in 1 minute,the efficiency is more than doubled
● The screws are automatically arranged to feed,and the special-shaped screws are automatically screened,and the empty materials are automatically replenished
Product Parameters
| Screw locking range | No clamps required, can be easily operated at any position 360 degrees | ||||||
| Screw locking time | 0.8~1.0s/pcs | ||||||
| Interface | Display and adjust various parameters, with counting function, to better control production capacity | ||||||
| Feeder capacity | More than 5,000 standard screws | ||||||
| Control system | MCU + touch screen control system | ||||||
| Motor system | Brand precision motor | ||||||
| Power | 100W | ||||||
| Input power supply | AC 220V/50HZ | ||||||
| Working air current | 0.4~0.6MPA | ||||||
| Applicable products | Products with screw counterbore depth ≤300mm can be easily locked | ||||||
| Universal scope | Screws can be used interchangeably between the same products,and different screws & nuts can be used interchangeably within a diameter tolerance of 0.3mm |
||||||
| Working environment temperature | 5~40° | ||||||
| Humidity of working environment | 20-90% | ||||||
| Suitable for locking screw size | M1.4~M5(the length of screw donot over 16mm) | ||||||
| Feeding mode | Air blowing feeding method | ||||||
| Machine size(L*M*H) | 420×220×280mm | ||||||
| Machine weigh | 12KG | ||||||
Product Application
Manufacture Ability
Yoda Machinery Equipment is a professional equipment company specializing in the research and development, production and sales of automatic locking screw machines and non-standard automation, and enjoys a high reputation in the industry.
