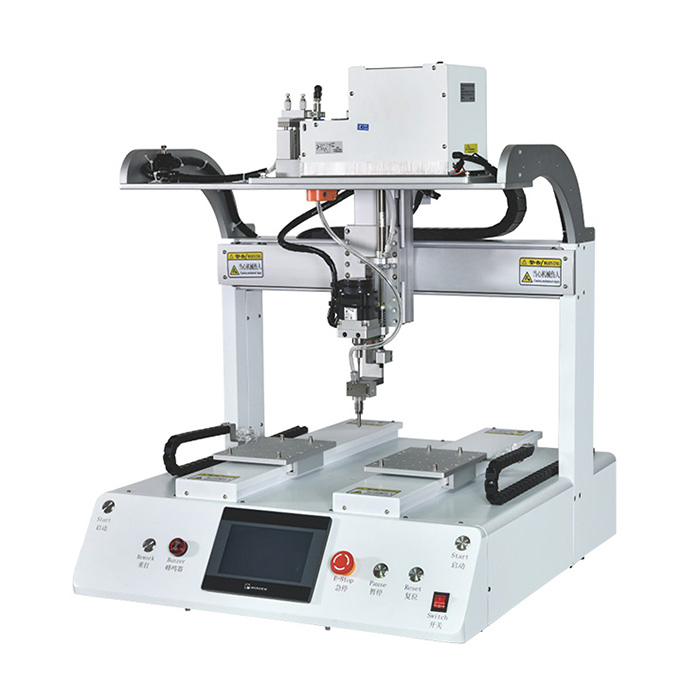

Automatic Screw Driving Machine SF-4223-YY Automatic Screw Driving Machine SF-4223-YY

Automatic Screw Locking Machine SF-4223-YY

Screw locking range(X*Y1*Y2*Z): 230×420×420×135mm
Screw locking time: 0.8~1.2s/pcs
Repetitive accuracy: ±0.02mm
Program recording mode: 15 groupe, each group 99 points
Electric batch mode: Precision servo motor (Mitsubishi/Delta)
Feeding mode: Turntable screw feeding (self-owned brand)
Control system: MCU + touch screen control system
Motor system: Precision stepping (closed loop) motor (domestic brand)
Driving mode: Synchronous belt/precision linear guide (Taiwan HIWIN)
Input power supply: 220V/50HZ
Working air current: 0.4~0.6MPA
Edit mode: Hand drag & teaching
Working environment temperature: 5~40°
Humidity of working environment: 20-90%
Applicable screw specifications: PB/KB head type screws (including stainless steel screws) except meson type

GET A QUOTE


Product Description

Automatic Screw Locking Machine SF-4223-YY
Suction and Blowing Type

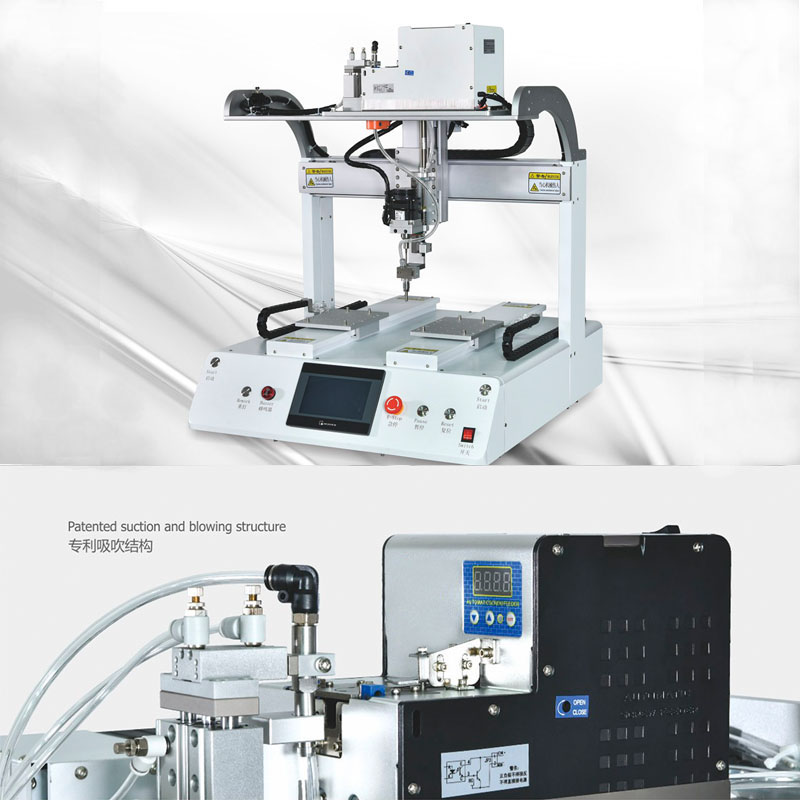

Patented suction and blowing structure

● The suction and blowing screw taking structure can realize the locking function of the standard surface structure of the product locking screw position
● Dual-mode left and right alternately replace products to achieve high-efficiency work mode
● Supports missing locking/ tooth sliding/tooth floating alarm function
● Supports the adjustment function of front-loading and rear-taking or front-loading and front-taking
● Supports auto-sensing startup function
● Supports servo electric batch speed and torque self-adjusting function
● Supports hand-drag adjustment function for locking screw points



Product Parameters


Screw locking range(X*Y1*Y2*Z) 230×420×420×135mm
Screw locking time 0.8~1.2s/pcs
Repetitive accuracy ±0.02mm
Program recording mode 15 groupe, each group 99 points
Electric batch mode Precision servo motor (Mitsubishi/Delta)
Feeding mode Turntable screw feeding (self-owned brand)
Control system MCU + touch screen control system
Motor system Precision stepping (closed loop) motor (domestic brand)
Driving mode Synchronous belt/precision linear guide (Taiwan HIWIN)
Input power supply 220V/50HZ
Working air current 0.4~0.6MPA
Edit mode Hand drag & teaching
Working environment temperature 5~40°
Humidity of working environment 20-90%
Applicable screw specifications PB/KB head type screws (including stainless steel screws) except meson type
Suitable for locking screw size M1.5~M4(the screw length does not exceed 16mm),customized if it exceeds the range,screw length ratio must comply with 1:1.5
Machine size(L*M*H) 810*720*900mm
Machine weight 80KG


Product Application

SF-4223-YY Automatic Screw Locking Machine is mainly used in toys, small appliances, electronic product, instruments and apparatus, lighting,plastic parts, alloy parts, communication equipment, audio and other screw locking processes.



Manufacture Ability


Yoda Machinery Equipment is a professional equipment company specializing in the research and development, production and sales of automatic locking screw machines and non-standard automation, and enjoys a high reputation in the industry.
screw locking machine manufacture ability
