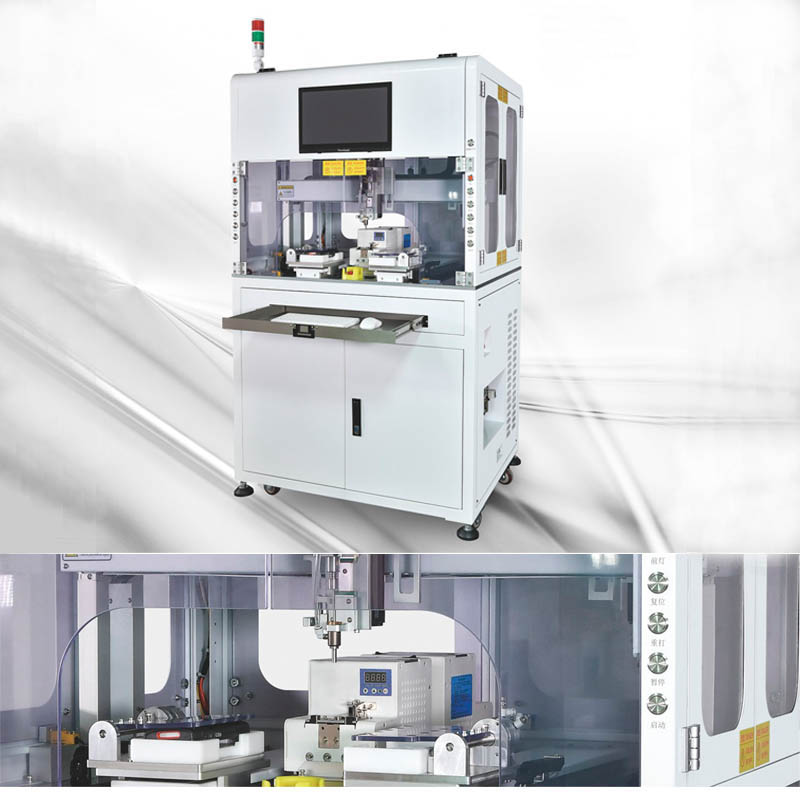

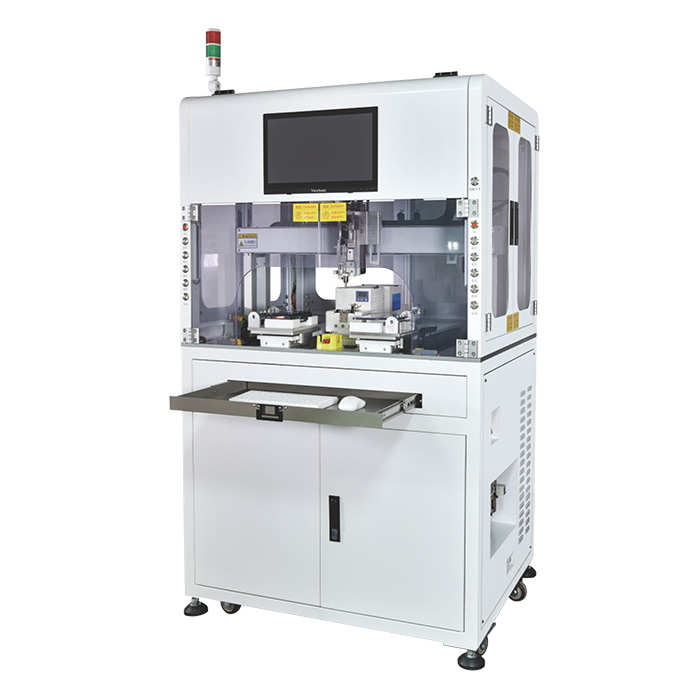

Product Description
Vacuum Suction Type
● The vacuum suction screw structure can realize the locking function of the deep hole/bevel screw/meson screw of the product lock screw position
● Double-mode left and right alternately replace products to achieve high efficiency working mode
● Dual molds can be used to drive two different screws of one product at the same time or two molds can be used to drive products separately at the same time to achieve high-efficiency work mode
● Supports missing locking/ tooth sliding/tooth floating alarm function
● Supports the adjustment function of front-loading and rear-taking or front-loading and front-taking
● Supports auto-sensing startup function
● Supports servo electric batch speed and torque self-adjusting function
● Supports real-time torque data upload and curve display function
● Supports code scanning MES data recording function
● Supports single-point screw torque setting function
● Supports hand-dragging adjustment to lock screw point adjustment function
● The vertical base does not require an additional worktable and can be flexibly moved and adjust the working position
Product Parameters
| Screw locking range(X*Y1*Y2*Z) | 350×650x350×650*100mm |
| Screw locking time | 1.5~1.8s/pcs |
| Repetitive accuracy | ±0.03mm |
| Program recording mode | 15 groupe,each group 99 points |
| Electric batch mode | Precision servo motor (Mitsubishi) |
| Feeding mode | Turntable screw feeding (self-owned brand) |
| Control system | Industrial computer control system |
| Motor system | Precision stepping (closed loop) motor (domestic brand) |
| Driving mode | Synchronous belt/precision linear guide (Taiwan HIWIN) |
| Input power supply | 220V/50HZ |
| Working air current | 0.4~0.6MPA |
| Editorial model | Hand drag & teaching |
| Working environment temperature | 5~40° |
| Humidity of working environment | 20-90% |
| Applicable screw specifications | Apply for all screws |
| Suitable for locking screw size | M1.0~M4(the screw length does not exceed 16mm),customized if it exceeds the range |
| Machine size | 800*1000*1900mm(L*M*H) |
| Machine weight | 120KG |
Product Application
Manufacture Ability
Yoda Machinery Equipment is a professional equipment company specializing in the research and development, production and sales of automatic locking screw machines and non-standard automation, and enjoys a high reputation in the industry.
